Sale
{{ item.Quote }}

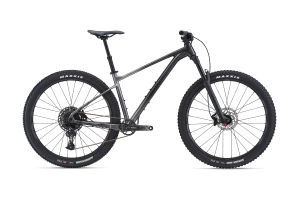

Fathom 29 1

€1,580 Original price €1,779

Available sizes: M, L, XL
Only in store

Contact
Share

Crank up steep climbs with smooth-rolling efficiency. Swoop down singletrack descents with stability and speed. This aluminium hardtail 29er delivers a balanced ride quality on XC terrain.

Built on an ALUXX SL aluminium frame, the Fathom 29 features updated geometry that produces a stable ride quality for challenging XC trails. The frame is optimised for a 130mm suspension fork for smooth control on the descents. An updated Giant WheelSystem comes with tubeless tyres already set up, making it easy to experience added efficiency and control, plus a reduced risk of flats on technical terrain.

Key Performance Factors

Trail Tuned Design

ALUXX SL aluminium frameset is hand-built in-house by the world leader in aluminium engineering.

Responsive Handling

Frame geometry is designed to optimise the balance and roll-over capabilities of 29-inch wheels.

Smooth Control

Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks and ruts. Grippy, high-volume tires boost traction on rugged terrain. And a dropper seatpost with handlebar remote lets you adjust saddle height on the fly for confident positioning on changing terrain.

Highlights

Built on a lightweight ALUXX SL aluminum frameset with progressive trail geometry, Fathom 29 is designed for the added stability and roll-over capabilities of 29-inch wheels with grippy, high-volume 2.5-inch tires. It has a number of trail-specific features including a 130mm suspension fork and dropper seatpost. Here’s a look at its key technologies:

Fathom 29 with interactive tooltips

Techs & Features

ALUXX SL Aluminum Technology
OverDrive
Tubeless System

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)3801543016.946518.349519.5
BSeat Tube Angle (degrees)75.0°75.0°75.0°75.0°
CTop Tube Length (mm) (inch)59223.361224.163925.266226.1
DHead Tube Length (mm) (inch)953.7953.71054.11154.5
EHead Tube Angle (degrees)66.0°66.0°66.0°66.0°
FFork Rake (mm) (inch)441.7441.7441.7441.7
GTrail (mm) (inch)1224.81224.81224.81224.8
HWheelbase (mm) (inch)115445.4117446.2120347.4122748.3
IChain Stay Length (mm) (inch)43517.143517.143517.143517.1
JBottom Bracket Drop (mm) (inch)602.4602.4602.4602.4
KStack (mm) (inch)62224.562224.563124.864025.2
LReach (mm) (inch)42516.744517.547018.549019.3
MStand Over Height (mm) (inch)73028.774529.376530.179031.1
NHandlebar Width (mm) (inch)78030.778030.778030.778030.7
OStem Length (mm) (inch)401.6401.6502502
PCrank Length (mm) (inch)1656.51706.71706.71706.7
QWheel Size 29"29"29"29"
Specs
  • Sizes
    S, M, L, XL
  • Colours
    Gloss Black/Charcoal
  • Frame
    ALUXX SL-Grade Aluminium
  • Fork
    RockShox 35 Silver TK air sprung 130mm travel fork
  • Shock
    N/A
  • Handlebar
    Giant Contact, 35mm
  • Stem
    Giant Contact TR 35
  • Seatpost
    Giant Contact Switch dropper post with remote, 30.9
  • Saddle
    Giant Romero
  • Pedals
    platform
  • Shifters
    SRAM SX Eagle
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM NX Eagle
  • Brakes
    Shimano MT420
  • Brake Levers
    Shimano MT401
  • Cassette
    SRAM SX Eagle, 11x50
  • Chain
    SRAM SX Eagle
  • Crankset
    SRAM SX Eagle, 30t
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width
  • Hubs
    [F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Giant Sport Boost QR 148, loose ball
  • Spokes
    Sapim
  • Tyres
    [F] Maxxis DHF, 29x2.5 WT, EXO/TR[R] Maxxis Aggressor, 29x2.5 WT, foldable, EXO/TR
  • Extras
    Tubeless ready
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All specifications listed are subject to change without notice.
